Electric H Frame Hydraulic Press
TPS series hydraulic press can assemble, dismantle, straightening, pressing, stretching, bending, punching and so on. The series adopts the combination of Italian CNK and CBZ oil pump, which is combined with oil supply, which is more than 60% energy saving compared with traditional hydraulic press.Increase efficiency 2-3 times; It has small volume, high pressure, simple structure and light weight.The table can be moved up and down, which greatly expands the height of the machine and makes it easier to use.

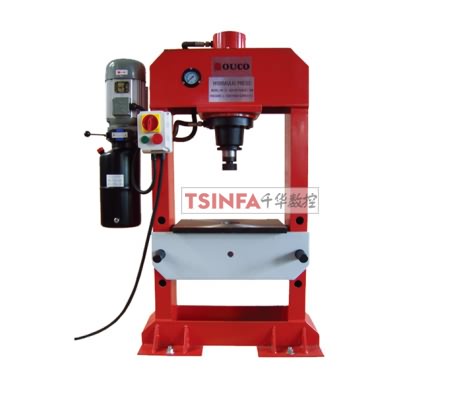

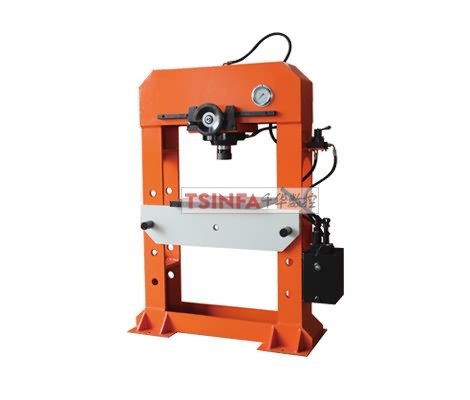

| MODEL | TPS-10 | TPS-20 | TPS-30 | TPS-50 | TPS-63 |
| CAPACITY（KN） | 100 | 200 | 300 | 500 | 630 |
| PRESSURE（MPa) | 25 | 25 | 25 | 25 | 30 |
| TRAVEL (mm) | 200*200 | 200*250 | 200*270 | 220*405 | 220*405 |
| TABLE SIZE ( mm) | 260×300 | 260 x 300 | 300×400 | 480×360 | 400 x 500 |
| DIMENSION (mm) | 1000x450x1200 | 1160 x 550×1500 | 1160x550xl600 | 1500x650x1950 | 1500x650x1950 |
| WEITHT (KG) | 220 | 320 | 420 | 980 | 1020 |
| MODEL | TPS-100 | TPS-150 | TPS-200 | TPS-250 |
| CAPACITY (KN) | 1000 | 1500 | 2000 | 2500 |
| PRESSURE (MPa) | 30 | 30 | 30 | 30 |
| TRAVEL(mm） | 250+405 | 250+405 | 300+405 | 300+405 |
| TABLE SIZE (mm) | 440×980 | 440 x 980 | 500 x 980 | 500 x 980 |
| DIMENSION (rrm) | 1730x730x2200 | 1730x730x2200 | 1800 x 800×2200 | 1800 x 800×2250 |
| 730x630x960 | 730 x 630×960 | 830x730x1260 | 830x730x1260 | |
| WEITHT (KG) | 1220 | 1350 | 2200 | 2400 |

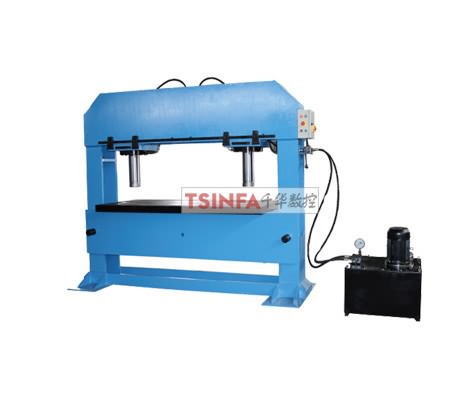

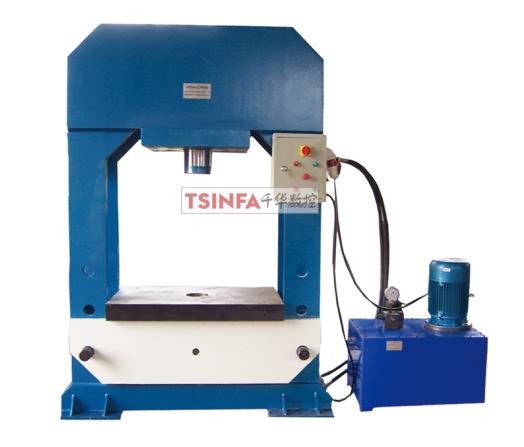

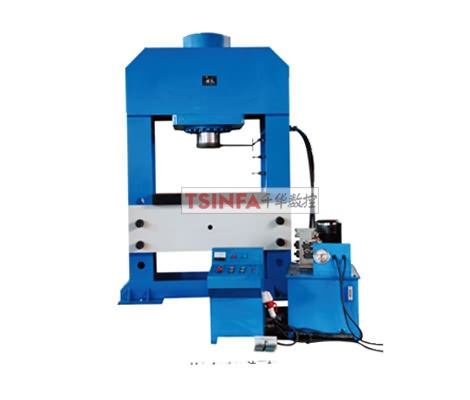

| MODEL | TPS-200 | TPS-300 | TPS-400 | TPS-500 | TPS-630 |
| CAPACITY ( KN) | 2000 | 3000 | 4000 | 5000 | 6300 |
| PRESSURE (MPa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| TRAVEL (mm) | 300+405 | 300+405 | 300+405 | 300+405 | 400+405 |
| TABLE SIZE ( mm ) | 980 x 500 | 700×1200 | 800×1200 | 900×1200 | 1000×1200 |
| DIMENSION (mm) | 1940 x 950 x 2350 | 2100x950x2700 | 2300×1000 x 2900 | 2300×1000 x 2900 | 2300×1200 x 2900 |
| 900 x 800×1060 | 1100x1200x1350 | 1100x1200x1360 | 1100x1200x1350 | 1100x1200x1350 | |
| WEITHT (KG) | 2200 | 4200 | 5500 | 6500 | 9500 |
