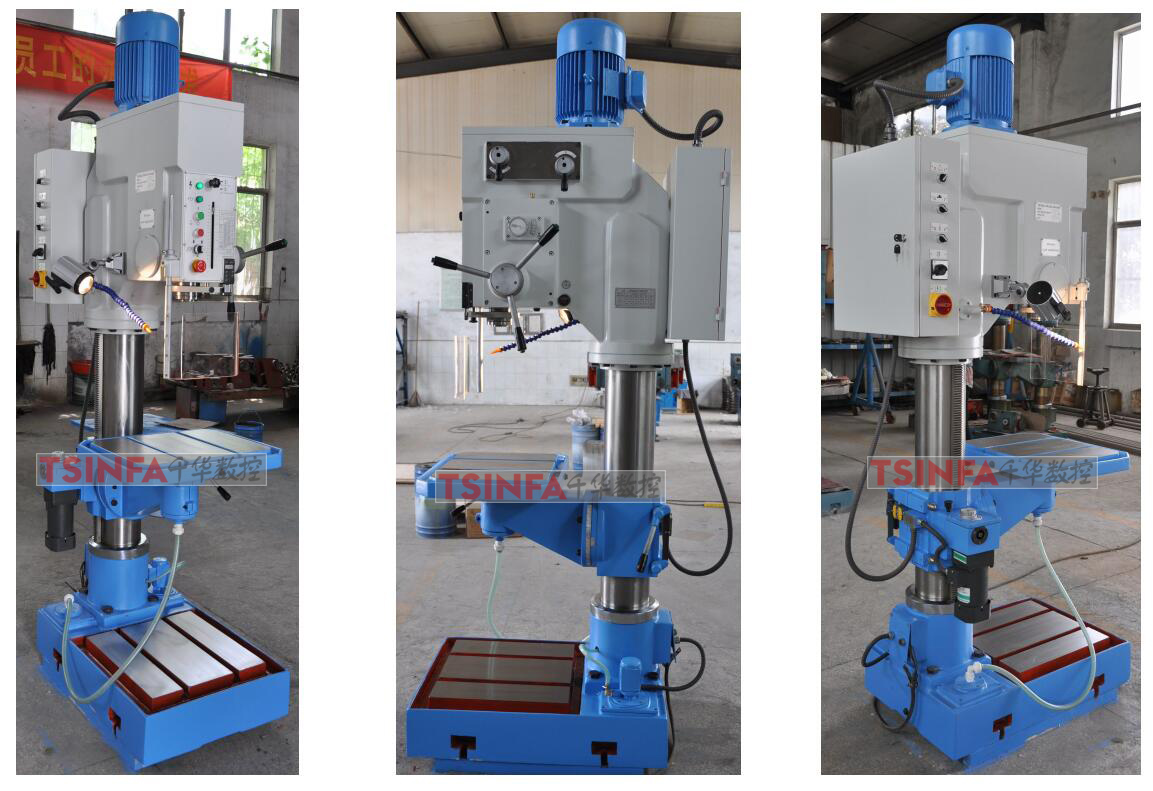

Gear Head Vertical Drilling Machine

CONTACT OUR SUPPORT TEAM
Model Z5030A Z5035A Z5040A Z5050A
Max. Drilling dia.(steel) and tapping dia.(mm) φ30/M18 Φ35/M20 Φ40/M24 Φ50/M24
Max.Travel of spindle(mm) 135 150 180 180
Max.Distance from spindle to generating line of column(mm) 315 330 360 360
Max.Distance from spindle nose to surface of worktable.(mm) 520 610 600 600
Max.Distance from spindle nose to surface of base worktable(mm) 1080 1150 1215 1205
Max Travel of worktable and bracket(mm) 480 540 560 525(410)
Swivel angle of worktable ±45° ±45° ±45° ±45°
Spindle taper bore(MT) MT3 MT4 MT4 MT4
Spindle speed steps 12 12 12 12
Spindle speed range(r/min) 70~2600 70-2600 42-2050 42-1865
Spindle feed steps 3 3 4 4
Spindle feed range(mm/r) 0.1;0.2;0.3 0.1;0.2;0.3 0.07;0.15;0.26;0.4 0.07;0.15;0.26;0.4
Dimension of worktable(mm) 450×450 500×550 580×450 580×450
Effective working area of worktable(mm) 690×480 760×500 820×550 820×550
Effective of T-slot of table and base piate(mm) 2-14  2-16 2-14 2-16 2-14  2-16 2-14  2-16
Diameter of column(mm) φ125 Φ140 φ160 φ170
3-phase two speed Ac montor Power(Kw) 1.0/1.5 1.5/2.2 2.2/2.8 2.2/2.8
Voltage(V) 220.380.420.440 220.380.420.440 220.380.420.440 220.380.420.440
Speed(r/min) 960/1450 960/1450 960/1450 960/1450
3-phase pummotor Power(Kw) 0.09 0.09 0.09 0.09
Voltage(V) 220.380.420.440 220.380.420.440 220.380.420.440 220.380.420.440
Flow rate(L/min) 6 6 6 6
Machine dimension(mm) 650×1050×1950 700×1150×2150 700×2150×2150 700×1150×2150
Net weight and gross weight(Kg) 440/500 670/730 740/800 800/860
Sets/20′ Container 24 20 16 16

Main structure:

Radial drilling machine is mainly composed of base, inner column, outer column, rocker arm, spindle box and worktable. The inner column is fixed at one end of the base, and the outer column is sheathed outside, and the outer column can rotate 360 degrees around the inner column. One end of the rocker arm is a sleeve, which is set to move up and down the outer column. Because the screw and the outer pillar are connected together, and the lifting nut is fixed on the rocker arm, the rocker arm cannot rotate around the outer column, and can only be rotated with the outer column. The spindle box is a compound part, which is composed of main drive motor, spindle and spindle transmission mechanism, feed and speed changing mechanism, and operation mechanism of machine tool. The spindle box is mounted on the horizontal guide rail of the rocker arm and can be operated by the Handwheel to move along the rocker arm in the horizontal guide rail.

Motion form:

When processing, by the special tightening device will be fastened to the spindle box on the rocker arm guide, the outside column fastening inside the column, the rocker arm fastening on the outer column, and then drilling processing.
When drilling, the bit is rotated and the side is vertically advanced, the movement is as follows:

(1) The main movement of the radial drilling machine is the rotational motion of the spindle
(2) The longitudinal feed motion of the spindle
(3) auxiliary movement is: The rocker arm moves vertically along the outer column, and the spindle box moves along the direction of the rocker arm length, The rotary motion of the rocker arm and the outer column around the inner column.

Advantage:

  1. The use of hydraulic preselection transmission mechanism can save the auxiliary time.
  2. Spindle positive and negative turn, parking (braking), variable speed, empty files and other movements, with a handle control, light manipulation.
  3. Spindle box, rocker arm, inside and outside the cylinder using the hydraulic driven diamond-shaped block clamping mechanism, clamping reliable.
  4. Rocker-Arm guide, outer cylindrical surface, spindle, spindle sleeve and inner and outer column Rotary Raceway are all quenched, which can keep the stability of machine tool precision for a long time and prolong the service life.
  5. Have perfect safety protection device and outer pillar protection.
  6. In the structural design and in the manufacturing process, also took a series of effective measures to make the precision of the machine tool durability and the life of the whole machine is a large extension.

Standard Accessories

Adaptor
Drilling chuck
Elevating lever
Nut
Double-ended spanner
Spanner
Working light
Coolant system
Spindle power down feeder
Depth indicator
Table moving by motor

Optional Accessories:

Working light
Spring collet
Vice
Milling collet
