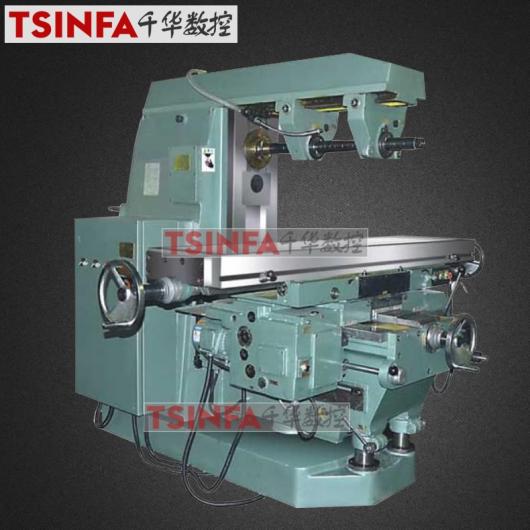

Horizontal Milling Machine H425A

Horizontal knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equipped with optional accessories, such as vertical milling head and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for machining process, maintenance, instrument, die and moulds.

Machine Characteristics.
● Hardened and ground slide ways ensure high accuracy.
● With high motor power and wide range speed, machine adapts to high speed cutting when using hard alloy cutters.
● With gear transmission in machine body and lifting platform, the machine is rigid enough to bear heavy duty processing.
● Complete coolant and lubrication system.
● DRO equipment is optional.

CONTACT OUR SUPPORT TEAM
Specifications Units H425A
Table size mm 425X2000
Numbers,width distance between T – slot mm 5X18X100
Max. longitudinal travel mm 1180  (manual 1200)
Max. cross travel mm 400 (manual 410)
Max. vertical travel mm 450  (manual 460)
Spindle to worktable mm 30-480
Maximum workpiece weight kg 800
Grade of the work-table feeds steps 15
Range of feed speeds mm/min 10-1250
Longitudinal, cross
Milling head spindle taper taper 7:24  ISO50
Range of feed speeds vertical mm/min 2.5-315
Speed of rapid travels mm/min 3200
Longitudinal, cross
Speed of rapid travels vertical mm/min 800
Main drive motor kw 11
Main motor speed rpm 1460
Feed motor kw 3
Feed motor speed rpm 1420
Coolant pump w 125
Net weight kg 5200
Overall dimensions(L W H) mm 2614X2497X2043
