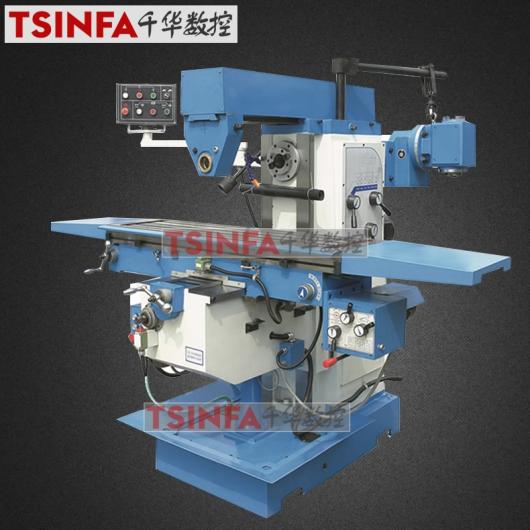

Horizontal Milling Machine HH36

Horizontal knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equipped with optional accessories, such as vertical milling head and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for machining process, maintenance, instrument, die and moulds.

Machine Characteristics.
● Hardened and ground slide ways ensure high accuracy.
● With high motor power and wide range speed, machine adapts to high speed cutting when using hard alloy cutters.
● With gear transmission in machine body and lifting platform, the machine is rigid enough to bear heavy duty processing.
● Complete coolant and lubrication system.
● DRO equipment is optional.

CONTACT OUR SUPPORT TEAM
Specifications Units HH36 H32 H40
Table size mm 1370*360 1320*320 1600*400
T- slot number and size mm 3-18-80 3-18-70 3-18-90
Max load capacity kg 400 500 800
Max. longitudinal travel mm 600 700/680 900/880
Max. cross travel mm 320 255/240 315/300
Max.vertical travel mm 500 320/300 380/360
Range of feed speeds mm/min X,Y:30-740, Z:400 X,Y:23.5-1180, Z:8-394 X,Y:23.5-1180, Z:8-394
Speed of rapid travels mm/min X:2300, Y:2300, Z:770 X:2300, Y:2300, Z:770 X:2300, Y:2300, Z:770
Spindle speed range r/mm 60-1800 30-1500 30-1500
Max. swivel angle of table ° ±45° ±45° ±45°
Spindle speed grade 级(stpes) 12 18 18
Distance from spindle center to working table mm 0-500 30-350 30-410
Spindle motor power kW 4 7.5 11
Overall dimensions
(L*W*H)
mm 1700*1700*2000 2294*1770*1665 2560*2130*1800
Gross Weight kg 2000 2650 3850
