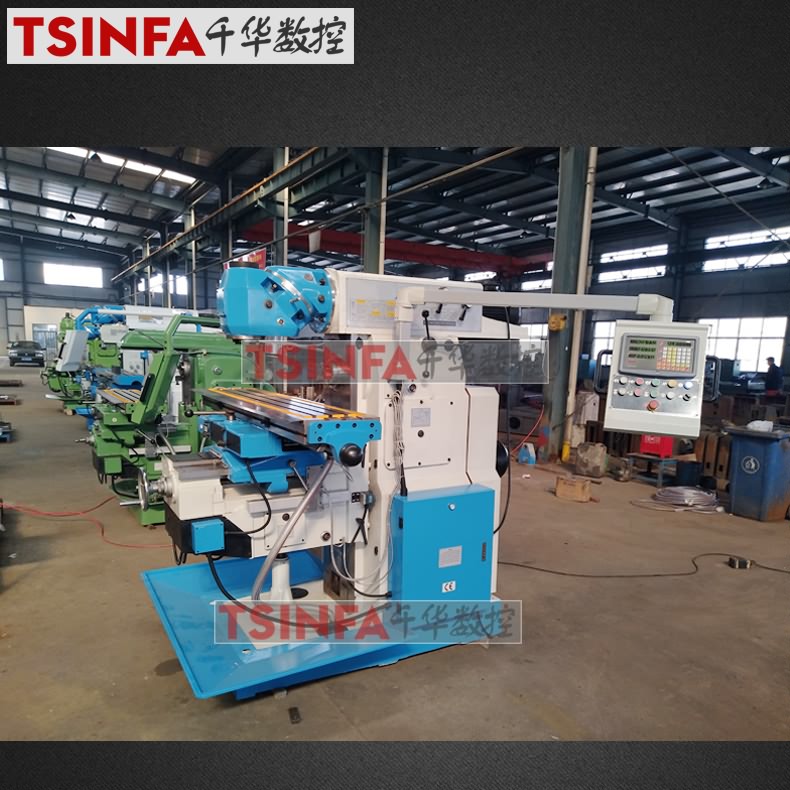

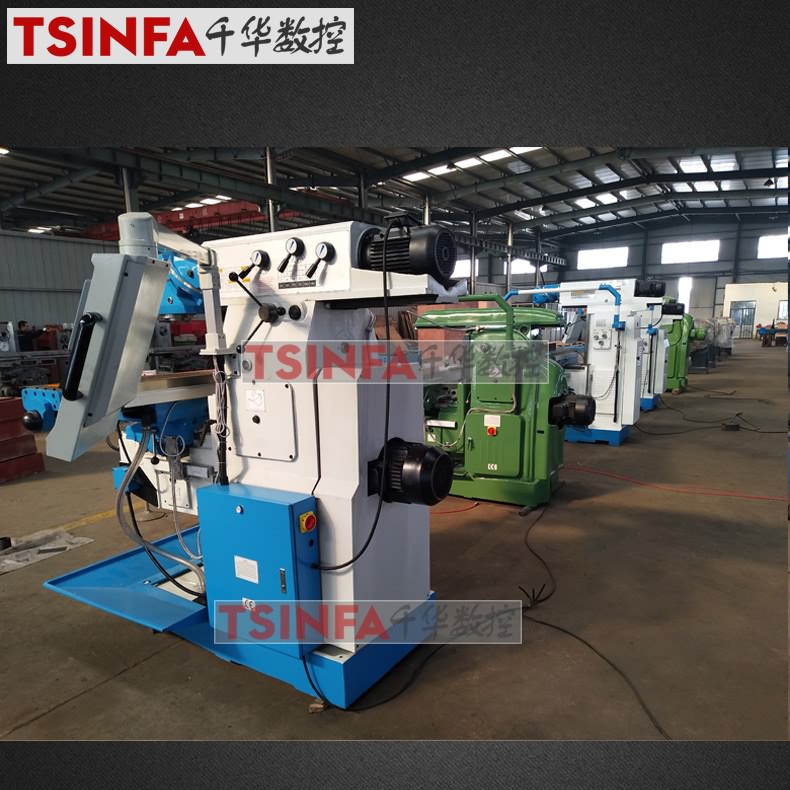

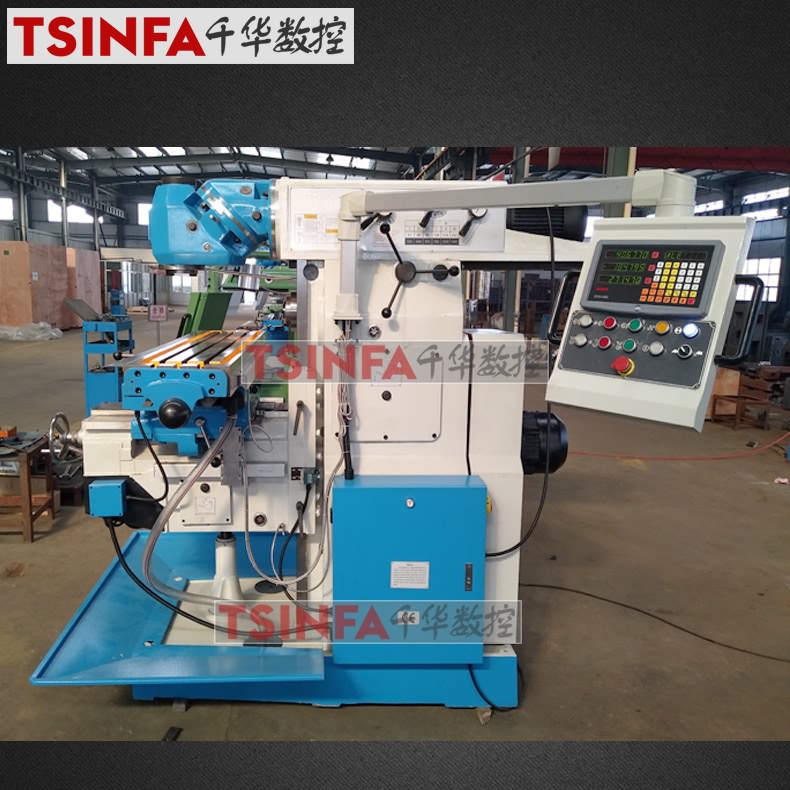

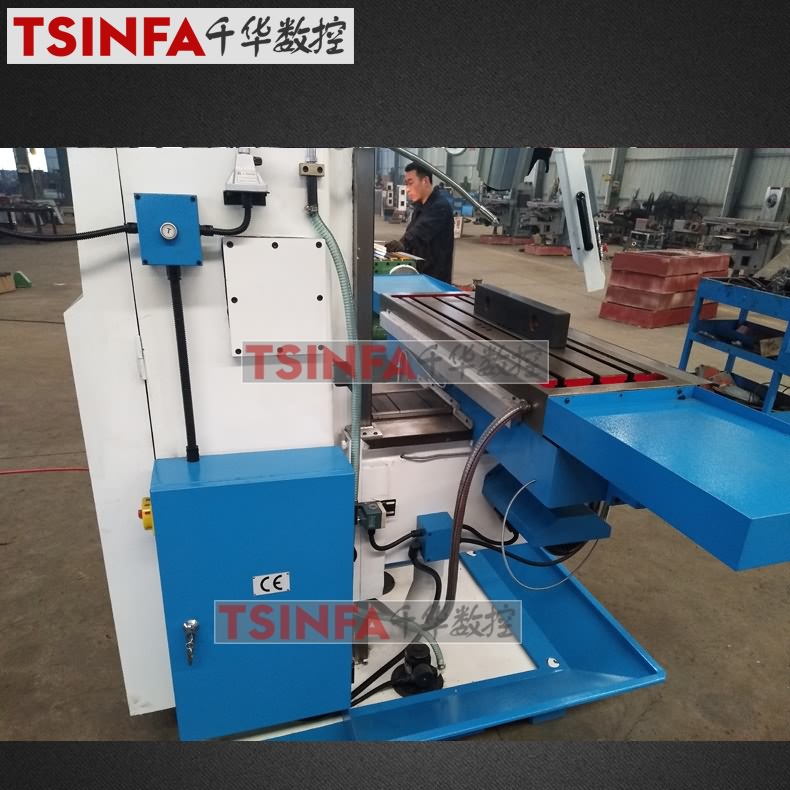

The machine can be used both for vertical milling and horizontal milling, with corresponding attachments, it can also mill various rotary surfaces and grooves, etc. Two-section revolving cutter head enables the spindle to revolve and adjust at any angle, and mill complicated parts with multi-angle and multi-face by one time of holding. It is the ideal machining equipment for the industries of mechanic manufacture, mould, automobiles and motorcycles.
● Machine frame features heavy ribbing and torsional rigidity
● Wide Rigid, hardened guide ways ensure maximum stability and constant accuracy
● All gears and shafts are hardened and ground
● All electric components are made by leading manufacturers
● Automatic feeds and rapid feeds on all 3 axes
● The control panel is mounted on a swivel boom for optimum positioning
● Central lubrication for low-maintenance operation
● Head swivel 360 degrees
| SPECIFICATION | UNIT | WN-736C | WN-736A | WN-736 |
| Table size | mm | 1600X320 | 1630X360 | 1250X360 |
| Numbers,width distance between T – slot | mm | 3X18X70 | 3X18X80 | 3X18X80 |
| Max. longitudinal travel | mm | 800 (manual1000） | 900 | 970 |
| Max. cross travel | mm | 310 | 300 | 300 |
| Max. vertical travel | mm | 420 | 390 | 390 |
| Travel of Arm | mm | 730 | 600 | 330 |
| Vertical spindle to worktable | mm | 150-570 | / | 150-540 |
| Horizontal spindle to worktable | mm | 0-420 | 0-390 | 0-390 |
| Swivel angle of the vertical milling head | degree | ±360° | ±360° | ±360° |
| Max. rotary angle of table | degree | ±45° | ±45° | / |
| Distance from vertical spindle to column surface (Min) | mm | 270 | 360 | 300 |
| Distance from horizontal spindle to ram bottom | mm | 200 | 210 | 250 |
| Level spindle taper | taper | 7:24 50 | ISO50 | ISO40 |
| Milling head spindle taper | taper | 7:24 50 | ISO50 | ISO40 |
| level spindle speed grade | steps | 18 | 12 | 12 |
| level spindle speed range | rpm | 30-1500(50HZ) | 60-1800 | 40-1300 |
| Milling Head spindle speed grade | steps | 12 | 12 | 12 |
| milling head spindle speed range | rpm | 60-1700 | 60-1800 | 35-1600 |
| Grade of the work-table feeds | steps | 18 | 6 | 8 |
| Range of feed speeds longitudinal,cross, vertical | mm/min | 23.5-1180 | 30-630 | 22-555 |
| Speed of rapid travels longitudinal, cross, vertical | mm/min | 2300/ 770 | 2000 | 555 |
| Milling head spindle drive motor | kw | 4 | 4 | 3 |
| level spindle drive motor | kw | 7.5 | 4 | 3 |
| Feed motor | kw | 1.5 | 1.5 | 0.75 |
| Coolant pump | w | 125 | 40 | 40 |
| Net weight /Gross weight | kg | 3500/3700 | 2388 | 2050 |
| Overall dimensions(L W H) | mm | 2120X1980X2000 | 1770X1830X1980 | 1500X2250X2010 |
| Packing Size | mm | 2230X2100X2250 | 1960X2080X2250 | 1750X1700X2250 |
The milling head is composed of two parts which are 45 degrees in angle. 45-degree angle design can offset the different direction of the machine tool processing more stable more scientific, more convenient. Lubrication with lubricating grease is convenient and durable. Can rotate independently of 360 degrees.
Spindle part:
Adopt forging, processing, tempering, quenching treatment. The material adopts 40CR strength and high durability. The use of P5-grade Harbin diagonal bearing precision high performance stability.
Transmission:
The gears are processed by heat treatment and fine grinding. High precision, durability, low noise, has 12 variable speed to meet the needs of different materials processing. And the gearbox can be moved back and forth so that the machining range of machine tool can be enlarged.
Column Bed body part:
The running part of ht250-300 cast iron is a large square rail which is higher than the tail type in rigidity and precision. And all use quenching treatment to achieve hrc40-50 between wear-resistant. can also be used in accordance with the needs of customers abroad wear-resistant plastic paste lightweight flexible and convenient. Horizontal shaft speed is usually up to 200 rpm to meet the processing needs. Can be used with brackets and horizontal milling cutter to process some groove and other processes of processing.
Screw:
Quality grinding screws, nuts for 10-1 tin bronze.
Gear:
grinding gear, surface hardening Treatment.
Guide:
The use of square rails, quenching treatment, strong rigidity, durable. The guide surface has been hardened to reach hrc38-42. The hardness of the worktable reaches between hrc40-50.
| No. | Name | Specification | Quantity |
| 1 | Milling machine with universal revolving cutter head | 1 | |
| 2 | Milling Chuck | 7：24 ISO40（4、5、6、8、10、12、14、16） | 1 set |
| 3 | Socket spanner | 5、6、8、10、12 | Each one |
| 4 | Horizontal milling hilt | ISO40/Φ22 Φ27 | Each one |
| 5 | Draw bar | 2 | |
| 6 | Spanner | S22－24 S17－19 | Each one |
| 7 | Machine vice | 160 | 1 |
| 8 | Ground screw | M16 | 4 |
| 9 | Nut and washer | M16 Φ16 | Each 4 |
| 10 | Operation manual | 1 | |
| 11 | Certificate of qualification | 1 | |
| 12 | Packing list | 1 |
Optional Accessories:
Universal dividing head
Rotary table
DRO
claming kit
Slotting head
