High Quality with moderate price
The order process is fully tracked after you pay
Fast delivery speed
We’ll replay you within 2hours.
Universal milling machine is batch production, goods can be sent within 10-50days.
If your order more than 100 sets please contact our support team for confirmation.
We usually accpet T/T (30% in advance and 70% before shipment) and L/C at sight.
You can send your people to our factory and we will offer traing free of charge.
First we choose best material for the processing.
Being and after processing, we will inspect the finished parts by professional quality inspector.
1. Technician available for training and installation at customer’s company
2. 1 Year warrantee. We will sent damage fo the machine parts(non-human factors)for free.
3. Internet service by sending emails and videos, communicating online or calling.

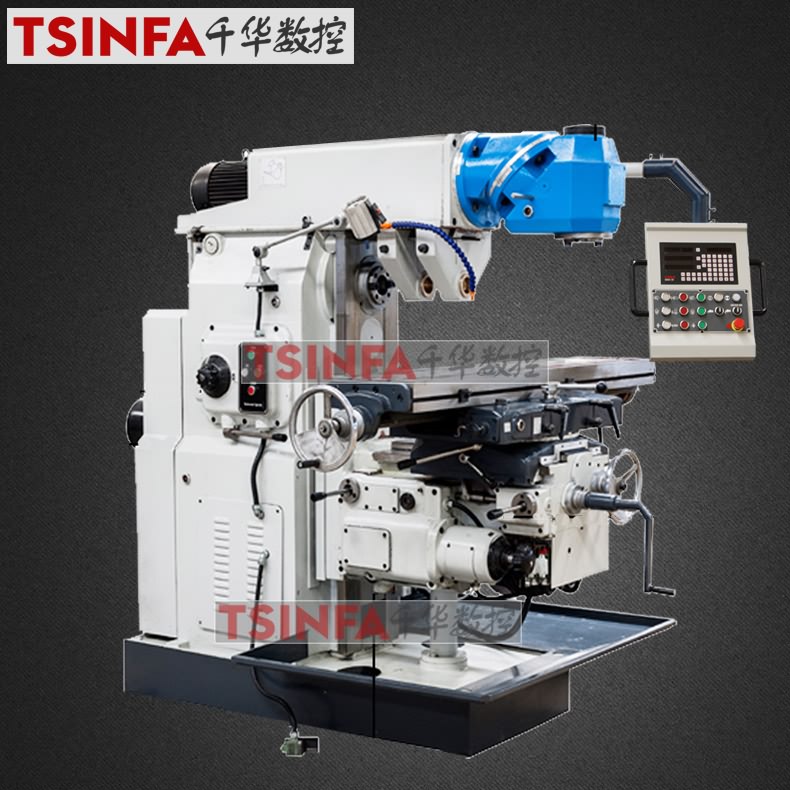

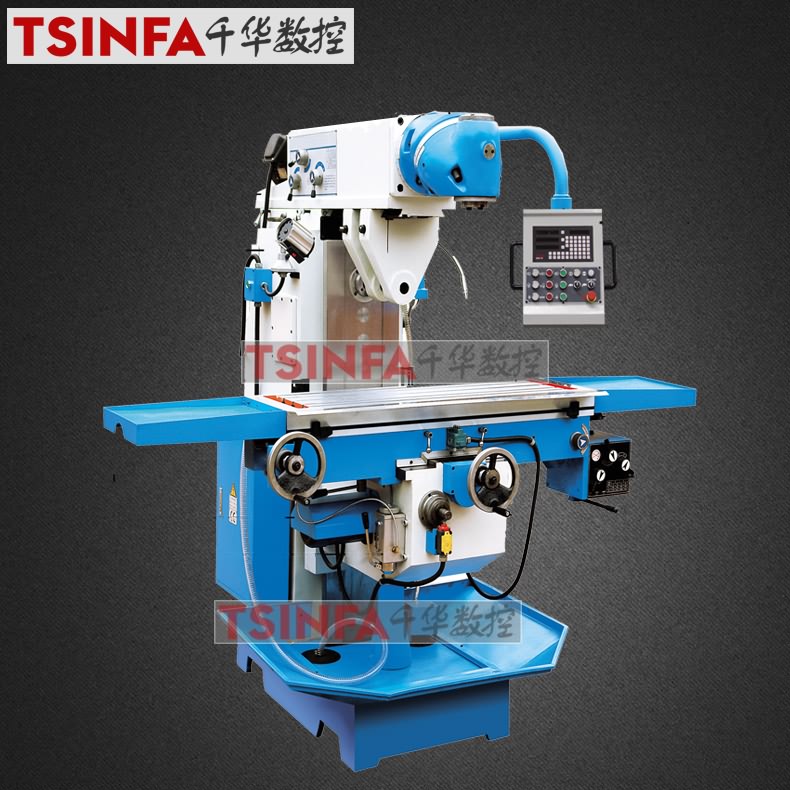

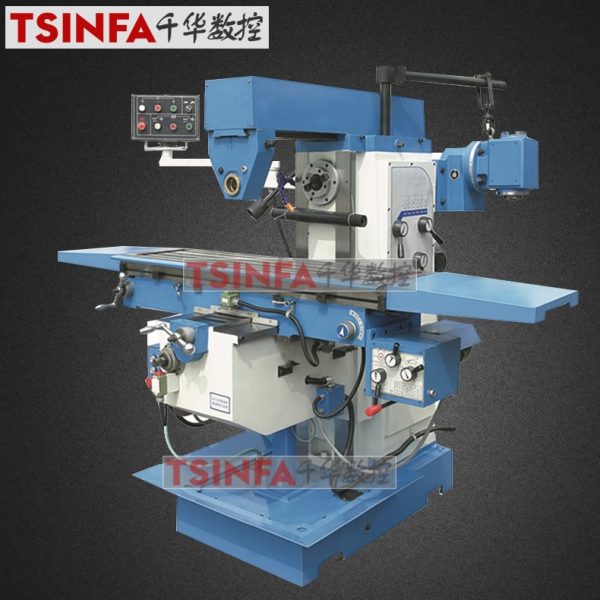

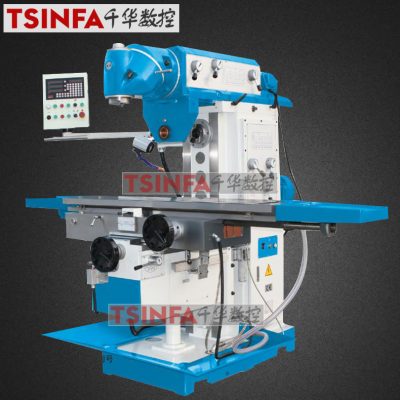

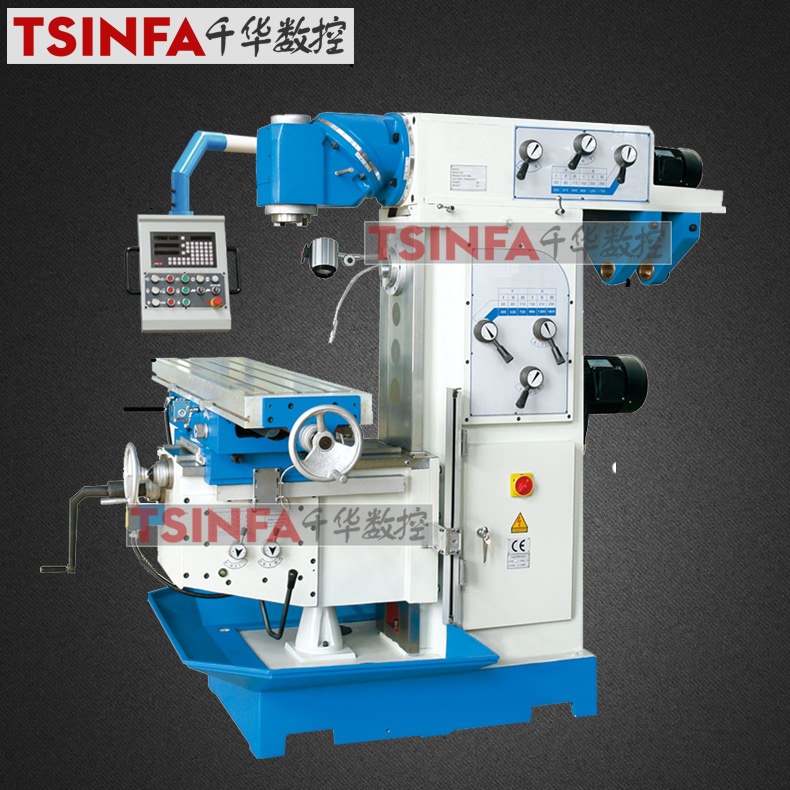

360° Swivel Head Universal Milling Machine:
Vertical & Horizontal Milling Dual Use in one Machine, It has a high cost performance. Spend one set of money to buy the function of two sets of equipment.
Table size（mm）:1250*360
Main motor (kw):970/300/390
Swivel angle at swivel head: ±360°
Max. rotary angle of table: 45°
Table size(mm): 1630*360
Table travel (X/Y/Z): 900/300/390
Swivel angle at swivel head: ±360°
Max. rotary angle of table: 45°
Table size(mm): 1600*320
Table travel (X/Y/Z): 800/310/420
Swivel angle at swivel head: ±360°
Max. rotary angle of table: 45°
Table size(mm): 1600×360
Table travel (X/Y/Z): 1300/320/450
Swivel angle at swivel head: ±360°
Max. rotary angle of table: Optional
Table size(mm): 1120*260
Main motor (kw): 2.2kw
Swivel angle at swivel head: ±360°
Max. rotary angle of table: —
Table size(mm): 1270*260
Main motor (kw): 3kw
Swivel angle at swivel head: ±360°
Max. rotary angle of table: —
Table size(mm): 1250*320
Main motor (kw): 3kw
Swivel angle at swivel head: ±360°
Max. rotary angle of table: ±45°
Table size(mm): 460*1235
Main motor (kw): 5.5kw
Table travel (X/Y/Z): 900*650*450
Swivel angle at swivel head: ±360°
Max. rotary angle of table: ±45°
Table size(mm): 460*1600
Main motor (kw): 5.5kw
Table travel (X/Y/Z): 1200*650*450
Swivel angle at swivel head: ±360°
Max. rotary angle of table: ±45°
Table size(mm): 500*1600
Main motor (kw): 7.5kw
Table travel (X/Y/Z): 1200*700*500
Swivel angle at swivel head: ±360°
Max. rotary angle of table: ±45°
Table size(mm): 500*2000
Main motor (kw): 7.5kw
Table travel (X/Y/Z): 1400*700*500
Swivel angle at swivel head: ±360°
Max. rotary angle of table: ±45°
We will answer your email shortly!

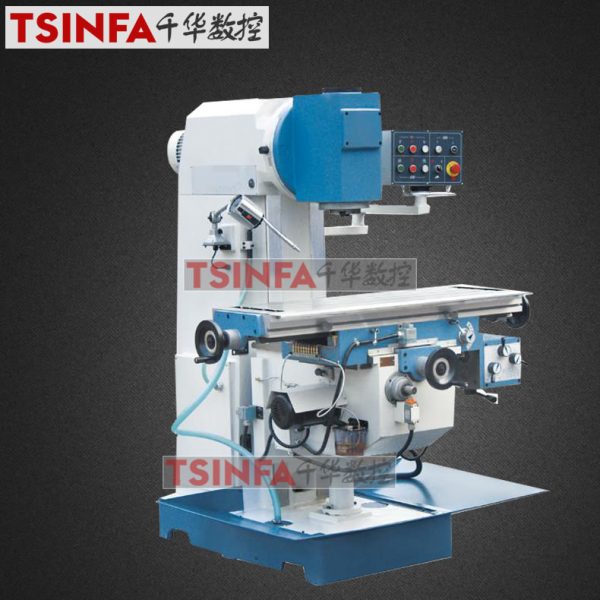

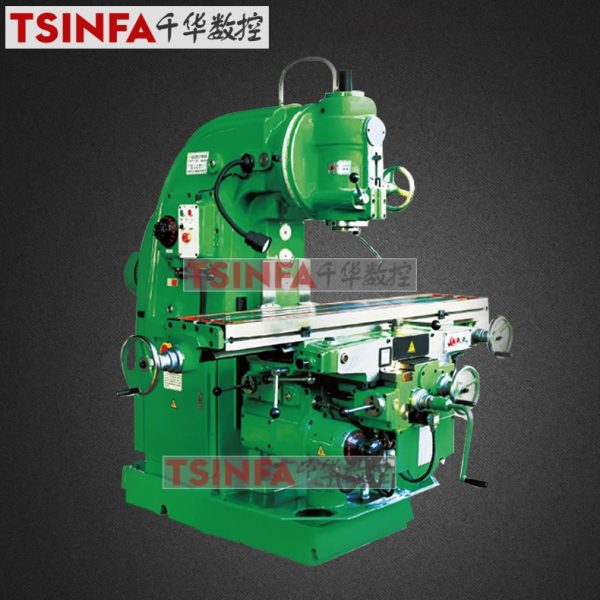

Vertical Knee type milling machine:

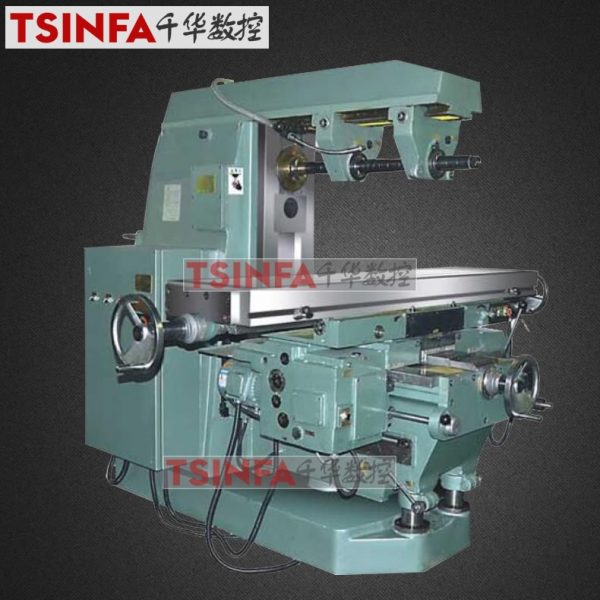

Horizontal Knee type milling machine:
Turret Knee type milling machine:
Vertical and Horizontal Conventional Universal Milling Machine – Manufacturer Ourlets
Shandong Tsinfa CNC Equipment Co.,Ltd is factory located in China, many years history. The machine can be used both for vertical milling and horizontal milling, with corresponding attachments, it can also mill various rotary surfaces and grooves, etc. Two-section revolving cutter head enables the spindle to revolve and adjust at any angle, and mill complicated parts with multi-angle and multi-face by one time of holding. It is the ideal machining equipment for the industries of mechanic manufacture, mould, automobiles and motorcycles.
● Machine frame features heavy ribbing and torsional rigidity
● Wide Rigid, hardened guide ways ensure maximum stability and constant accuracy
● All gears and shafts are hardened and ground
● All electric components are made by leading manufacturers
● Automatic feeds and rapid feeds on all 3 axes, Dro – digital read out, iso or nt spindel
● The control panel is mounted on a swivel boom for optimum positioning
● Central lubrication for low-maintenance operation
● Head swivel 360 degrees
