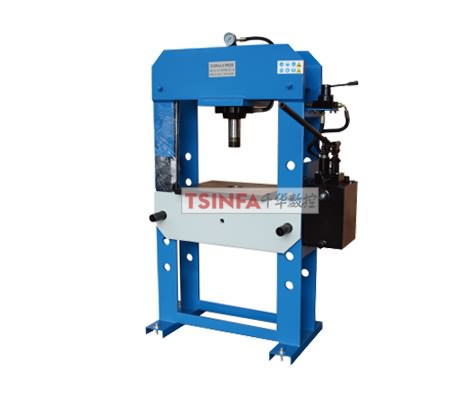

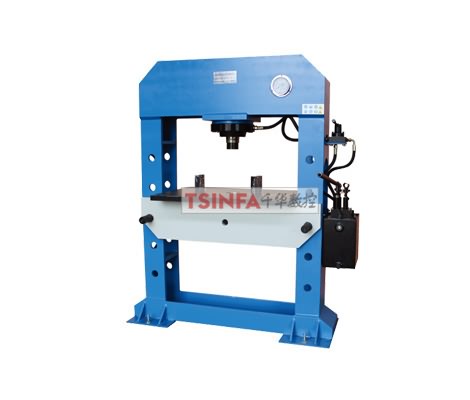

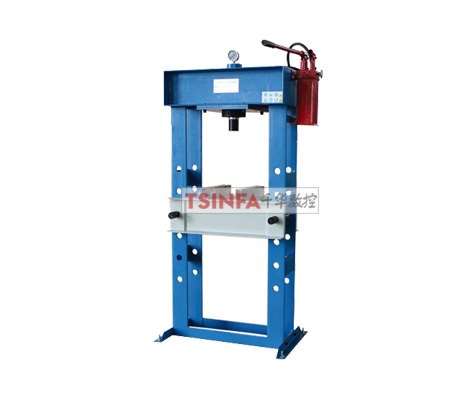

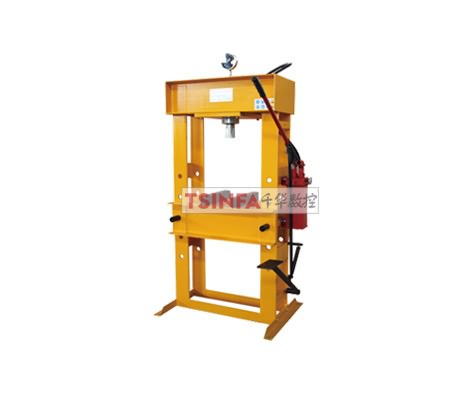

Manual Operated Hydraulic Press Machine
The products are suitable for assembly, disassembly, die-casting, molding, bending, straightening, straightening and straightening of machine parts. The TPS series manual hydraulic press is small in size, simple in structure and economical in application.Suitable for use in wild and infrequent occasions.
| MODEL | TPS-10S | TPS-20S | TPS-30S | TPS-40S | TPS-50S |
| CAPACITY（KN) | 100 | 200 | 300 | 400 | 500 |
| PRESSURE (MPa） | 20 | 50 | 50 | 60 | 60 |
| TRAVEL (mm） | 180+450 | 2+450 | 200+450 | 250+450 | 250+450 |
| TABLE SIZE（mm) | 200 x 300 | 200 x 300 | 300×400 | 360 x 500 | 360 x 680 |
| DIMENSION（mm） | 500 x 350×1300 | 500x350x1300 | 55 x400x1500 | 1000 x 560×1500 | 1000x600x1750 |
| WEITHT (KG) | 220 | 260 | 320 | 380 | 460 |
